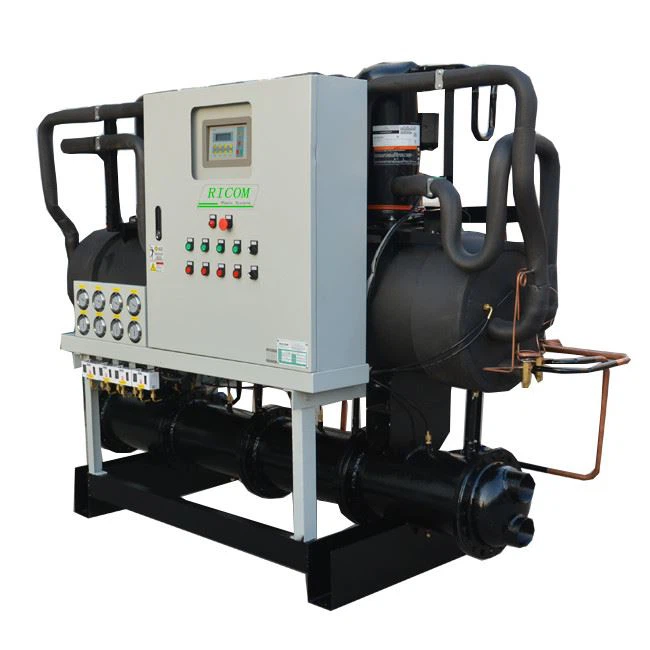

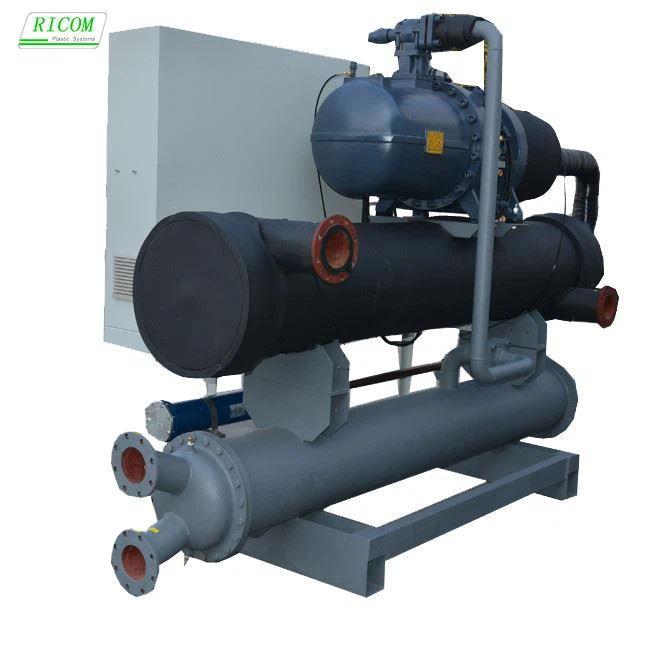

Product Description
Stainless hlau chiller yog lub chiller tshwj xeeb tsim los rau qhov tshwj xeeb tsis tshua muaj kub ib puag ncig. Nws tuaj yeem siv tsis tau tsuas yog hauv cov khoom siv laser, cov khoom siv vuam, cov khoom siv nqus tsev, cov khoom siv luam ntawv, cov khoom siv kho mob, cov khoom siv semiconductor, high-speed spindle, txhaj tshuaj molding tshuab, thiab lwm yam. spectrometer, plasma spectrometer, plasma mass spectrometer, X-ray fluorescence spectrometer, X-ray diffractometer, scanning electron microscope, kis tau tus mob electron microscope, thiab lwm yam.
Cov qauv ntawm stainless hlau chiller yog qhov zoo tshaj plaws, thiab cov phaj kub exchanger yog siv los txhawb lub cev. Cov qauv yog yooj yim, compact thiab siv tau.
Nanjing RICOM tub yees Equipment Co., Ltd. Stainless hlau dej txias yuav muab faib ua cov ntsia hlau hom thiab scroll hom chiller.
Product Principple
Cov yam ntxwv ntawm cov khoom
1. Lub evaporator thiab condenser ntawm stainless hlau chiller tuaj yeem txuag tau ntau dua 30% lub zog thiab kev ua haujlwm siab.
2. Kev tiv thaiv kev nyab xeeb zoo meej, kev ua txhaum cai, kev kho, kev saib xyuas yam tsis muaj cov neeg ua haujlwm tshaj lij.
3. Txais kev ua haujlwm siab compressor tuaj ntawm Tebchaws Europe thiab Amelikas, siab EER tus nqi, tsis tshua muaj suab nrov, kev ua haujlwm ruaj khov.
4. Ergonomic vaj huam sib luag, tag nrho tsis siv neeg tswj, nruab nrog precision hluav taws xob kub tswj, tuaj yeem ua haujlwm zoo rau lub sijhawm ntev.
5. Kev siv hluav taws xob hloov hluav taws xob hloov hluav taws xob muaj qhov zoo ntawm qhov poob qis, yooj yim rau rov qab roj, thiab lub tshav kub hloov lub raj yuav tsis khov thiab tawg.
6. Cov khoom lag luam ua tiav, suav nrog kev kub siab (dej qhov hluav taws xob kub -5 degree), nruab nrab kub (dej qhov hluav taws xob kub -15 degree), qis kub (dej qhov hluav taws xob kub -35 degree) peb series.
7. Cov qauv tsim tau zoo heev thiab cov phaj kub sib txawv yog siv los txhawb lub cev. Cov qauv yog yooj yim, compact thiab siv tau.
8. Kev sib xyaw ua ke zoo tshaj plaws ntawm cov ntsia hlau compressor, cov khoom siv hluav taws xob zoo thiab cov khoom siv hluav taws xob ua haujlwm siab, kev siv hluav taws xob zoo li 4.5.
Txheej txheem khoom
Nanjing RICOM tub yees Equipment Co., Ltd. ua raws li tus ntsuj plig ntawm craftsmanship thiab tsim cov khoom zoo.
Khoom Parameters
Technical parameters ntawm stainless hlau dej txias ntsia hlau chiller | ||||||||
Qauv | RC2-40WB | RC2-50WB | RC2-60WB | RC2-80WB | RC2-90WB | RC2-100WB | RC2-110WB | |
Lub tub yees muaj peev xwm (Kcal / h) | 122980/143/40.7 | 161422/187.7/53.4 | 173376/201.6/57.4 | 231942/269.7/76.7 | 288788/335.8/95.5 | 321554/373.9/106.4 | 346322/402.7/114.5 | |
Cov tub yees | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor Lub zog (Hp) | 40 | 50 | 60 | 80 | 90 | 100 | 110 | |
Muab hluav taws xob | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | |
Lub zog tswj hom | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | |
Pib hom | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | |
Piping ntawm dej txias system | Txoj kab uas hla | 3" | 3" | 3" | 3" | 4" | 4" | 4" |
Chilled drainage piping | Txoj kab uas hla | 3" | 3" | 3" | 3" | 4" | 4" | 4" |
Lub peev xwm tub yees yog raws li qhov ntsuas kub ntawm 7 degree, condenser kub ntawm 40 degree, refrigerant: R22, thiab dej txias ntawm 32-37 degree | ||||||||
Qauv | RC2-120WB | RC2-140WB | RC2-150WB | RC2-160WB | RC2-180WB | RC2-200WB | RC2-220WB | |
Lub tub yees muaj peev xwm (Kcal / h) | 376594/437.9/124.5 | 457348/531.8/151.2 | 477988/555.8/158 | 528642/614.7/174.8 | 594518/691.3/196.6 | 692386/805.1/228.9 | 745190/866.5/246.4 | |
Cov tub yees | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor Lub zog (Hp) | 120 | 140 | 150 | 160 | 180 | 200 | 220 | |
muab hluav taws xob | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | |
Lub zog tswj hom | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | |
Pib hom | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | |
Piping ntawm dej txias system | Txoj kab uas hla | 4" | 5" | 5" | 5" | 5" | 5" | 5" |
Chilled drainage piping | Txoj kab uas hla | 4" | 5" | 5" | 5" | 5" | 5" | 5" |
Lub peev xwm tub yees yog raws li qhov ntsuas kub ntawm 7 degree, condenser kub ntawm 40 degree, refrigerant: R22, thiab dej txias ntawm 32-37 degree | ||||||||
Qauv | RC2-240WB | RC2-280WB | RC2-300WB | RC2-320WB | RC2-340WB | RC2-360WB | RC2-400WB | |
Lub tub yees muaj peev xwm (Kcal / h) | 811066/943.1/268.2 | 914696/1063.6/302.4 | 955976/1111.6/316 | 1057284/1229.4/349.6 | 1144832/1331.2/378.5 | 1189036/1382.6/393.2 | 1384772/1610.2/457.8 | |
Cov tub yees | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor Lub zog (Hp) | 240 | 280 | 300 | 320 | 340 | 360 | 400 | |
Muab hluav taws xob | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | |
Lub zog tswj hom | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | |
Pib hom | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | |
Piping ntawm dej txias system | Txoj kab uas hla | 5" | 6" | 6" | 6" | 6" | 8" | 8" |
Chilled drainage piping | Txoj kab uas hla | 5" | 6" | 6" | 6" | 6" | 8" | 8" |
Lub peev xwm tub yees yog raws li qhov ntsuas kub ntawm 7 degree, condenser kub ntawm 40 degree, refrigerant: R22, thiab dej txias ntawm 32-37 degree | ||||||||
Qauv | RC2-460WB | RC2-560WB | |
Lub tub yees muaj peev xwm (Kcal / h) | 1490380/1733/492.8 | 1829392/2127.2/604.8 | |
Cov tub yees | R22/R134A/ | R22/R134A/ | |
Compressor Lub zog (Hp) | 460 | 560 | |
muab hluav taws xob | AC380V50HZ3PH / | AC380V50HZ3PH / | |
Lub zog tswj hom | 25%-50%-75%-100% | 25%-50%-75%-100% | |
Pib hom | Y/▲ | Y/▲ | |
Piping ntawm dej txias system | Txoj kab uas hla | 8" | 8" |
Chilled drainage piping | Txoj kab uas hla | 8" | 8" |
Lub peev xwm tub yees yog raws li qhov ntsuas kub ntawm 7 degree, condenser kub ntawm 40 degree, refrigerant: R22, thiab dej txias ntawm 32-37 degree | |||
Technical parameters ntawm stainless hlau dej txias scroll chiller | |||||||
Qauv | SCW-05B | SCW-08B | SCW-10B-Ⅱ | SCW-15B-Ⅲ | SCW-20B-Ⅱ | SCW-25B-Ⅱ | |
Lub tub yees muaj peev xwm (Kcal / h) | 15093 | 24148 | 30186 | 45279 | 60372 | 75465 | |
Cov tub yees | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor zog (Hp) | 5 | 8 | 10 | 15 | 20 | 25 | |
Circulating Pump zog (Hp) | 1 | 2 | 2 | 3 | 3 | 4 | |
Piping ntawm dej txias system | Txoj kab uas hla | 1" | 1.5" | 1.5" | 2" | 2" | 2.5" |
Dej ntws (m³ / h) | 3.4 | 5.5 | 6.85 | 9.3 | 12.7 | 15.1 | |
Chilled drainage piping | Txoj kab uas hla | 1" | 1.5" | 1.5" | 2" | 2" | 2.5" |
Dej ntws (m³ / h) | 2.74 | 4.27 | 4.27 | 8.59 | 8.59 | 14.55 | |
Muab hluav taws xob | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | |
Lub peev xwm tub yees yog raws li qhov ntsuas kub ntawm 7 degree, condenser kub ntawm 40 degree, refrigerant: R22, thiab dej txias ntawm 32-37 degree | |||||||
Qauv | SCW-30B-Ⅱ | SCW-40B | SCW-50B | SCW-60B | SCW-80B | |
Lub tub yees muaj peev xwm (Kcal / h) | 90558 | 120744 | 150930 | 181116 | 241488 | |
Cov tub yees | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor zog (Hp) | 30 | 40 | 50 | 60 | 80 | |
Circulating Pump zog (Hp) | 4 | Configured raws li tus neeg yuav tsum tau muaj tshaj 40HP | Configured raws li tus neeg yuav tsum tau muaj tshaj 40HP | Configured raws li tus neeg yuav tsum tau muaj tshaj 40HP | Configured raws li tus neeg yuav tsum tau muaj tshaj 40HP | |
Piping ntawm dej txias system | Txoj kab uas hla | 2.5" | 3" | 3" | 4" | 4" |
Dej ntws (m³ / h) | 18.5 | 24.5 | 30.2 | 36.2 | 48.2 | |
Chilled drainage piping | Txoj kab uas hla | 2.5" | 3" | 3" | 4" | 4" |
Dej ntws (m³ / h) | 14.55 | 22.06 | 22.06 | 42.2 | 42.2 | |
Muab hluav taws xob | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | |
Lub peev xwm tub yees yog raws li qhov ntsuas kub ntawm 7 degree, condenser kub ntawm 40 degree, refrigerant: R22, thiab dej txias ntawm 32-37 degree | ||||||
Cov neeg siv khoom Case
Stainless hlau chiller tuaj yeem siv rau hauv cov khoom siv laser, cov khoom siv vuam, cov khoom siv lub tshuab nqus tsev, cov khoom siv luam ntawv, cov khoom siv kho mob, cov khoom siv semiconductor, high-speed spindle, txhaj tshuaj molding tshuab, thiab lwm yam.
Kuv lub tuam txhab tau ua haujlwm ntau yam kev lag luam, muaj kev nplua nuj ntawm kev lag luam thov kev paub.
FAQ
Cov teeb meem tshwm sim thaum yuav khoom
Q: Ntev npaum li cas koj lub tuam txhab tau tsim?
A: Peb lub tuam txhab tau tsim nyob rau hauv 2014, tab sis feem ntau ntawm peb cov engineers tau nyob rau hauv kev lag luam rau ntau tshaj 15 xyoo, thiab peb tus thawj coj tau nyob rau hauv kev lag luam rau ntau tshaj 20 xyoo.
Q: Koj lub tuam txhab puas yog tuam txhab lag luam?
A: Peb lub tuam txhab yog lub tuam txhab lag luam, tab sis peb muaj peb lub Hoobkas.
Q: Koj cov nqe lus them nqi yog dab tsi?
A: T / T them 30% ua ntej thiab 100% ua ntej xa khoom.
Q: Koj lub sijhawm xa khoom ntev npaum li cas?
A: 25-30 hnub ua haujlwm rau cov khoom lag luam thiab 45 hnub ua haujlwm rau kev hloov kho tsis raug cai
Q: Lub warranty ntev npaum li cas?
A: Yog tias cov khoom tawg lossis puas lawm, tsis pub dhau 18 lub hlis txij li hnub tawm hauv lub hoobkas.
Cov khoom no yog muab pub dawb los ntawm peb lub tuam txhab (tshwj tsis yog cov khoom hnav vim muaj teeb meem zoo).
