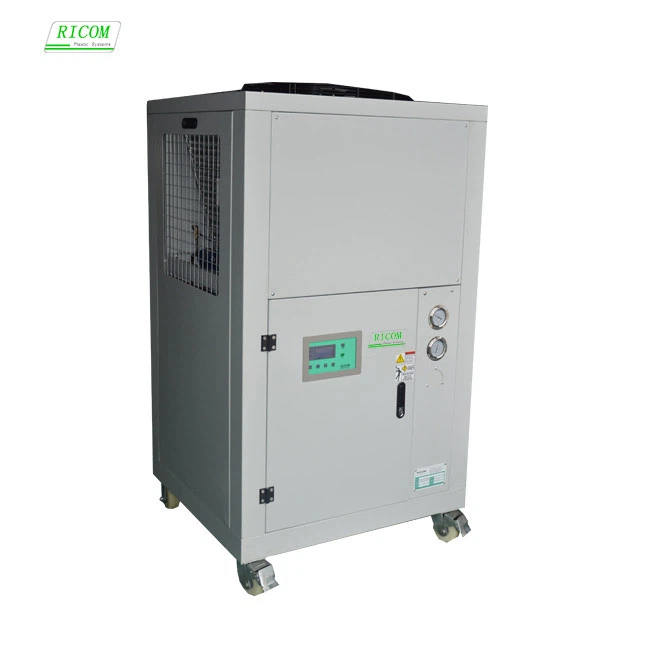

Product Description
Qhov qhib chiller chav tsev yog nruab nrog ntau yam kev tiv thaiv, ua tiav cov khoom thiab cov khoom siv, uas tuaj yeem siv rau hauv kev ua haujlwm tiag tiag. Haum rau kev txhaj tshuaj molding, electroplating, luam ntawv, tshuaj lom neeg, khoom noj khoom haus thiab lwm yam khoom siv cua txias.
Nanjing RICOM tub yees Equipment Co., Ltd..
Product Principple
Cov yam ntxwv ntawm cov khoom
1. Lub compressor ntawm chav tsev txais cov khoom lag luam nto moo semi-hermetic ntsia hlau compressors xws li Copeland thiab BITZER thiab cov khoom siv hluav taws xob tswj hluav taws xob, thiab tau nruab nrog lub condenser thiab evaporator ua los ntawm cov khoom siv hluav taws xob zoo thiab cov khoom siv tooj liab zoo rau kev sib pauv cua sov;
2. Nruab nrog ntau yam kev tiv thaiv kev nyab xeeb, kev ua haujlwm ruaj khov, tsis tshua muaj suab nrov, lub neej ua haujlwm ntev, kev ua haujlwm yooj yim; LCD zaub txiv neej-tshuab interface, kev ua haujlwm yooj yim thiab yooj yim, kev ua haujlwm yog qhov tseeb ntawm ib nrais muag;
3. Cov qauv muaj ib qho compressor lossis ntau lub compressor ua ke cov tub yees. Lub compressor tuaj yeem hloov pauv kev ua haujlwm raws li kev hloov pauv, sib npaug ntawm cov sijhawm ua haujlwm ntawm txhua lub tshuab compressor, thiab ua tiav cov txiaj ntsig ntawm kev txuag hluav taws xob thiab ua kom lub neej ntev ntawm lub tshuab chiller. Ua kom lub zog hloov pauv, txuag hluav taws xob ntau dua nyob rau hauv ib nrab load;
4. Cov qauv qhib, zoo nkauj zoo nkauj ntawm tag nrho lub tshuab, cov qauv yooj yim, tuaj yeem tshawb xyuas cov haujlwm ntawm chav tsev txhua lub sijhawm, kev teeb tsa thiab kev saib xyuas yog yooj yim thiab yooj yim;
5. Cov khoom no tuaj yeem tsim tau raws li cov kev xav tau tshwj xeeb ntawm cov neeg siv khoom, ua ke nrog cov cuab yeej zoo heev thiab cov qauv tsim khoom nruj, muab cov neeg siv khoom zoo thiab txuag hluav taws xob cov khoom tsis zoo.
Txheej txheem khoom
Nanjing RICOM tub yees Equipment Co., Ltd. ua raws li tus ntsuj plig ntawm craftsmanship thiab tsim cov khoom zoo.
Khoom Parameters
Technical parameters ntawm qhib cua - txias scroll chiller | |||||||
Qauv | SCA-05K | SCA-08K | SCA-10K-Ⅱ | SCA-15K-Ⅲ | SCA-20K-Ⅱ | SCA-25K-Ⅱ | |
Lub tub yees muaj peev xwm (Kcal / h) | 13583.7/15.8/4.5 | 21733.2/25.3/7.2 | 27167.4/31.59/9 | 40751.1/47.4/13.5 | 54334.8/63.18/18 | 67918.5/79/22.5 | |
Cov tub yees | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor zog (HP) | 5 | 8 | 10 | 15 | 20 | 25 | |
Circulating Pump zog (Hp) | 1 | 2 | 2 | 3 | 3 | 4 | |
Txias kiv cua | Txoj kab uas hla (mm) | 550 | 600 | 500 | 550 | 600 | 630 |
Cua Volume (m³ / h) | 6487 | 10820 | 2*6264 | 2*8487 | 2*10820 | 2*12220 | |
Chilled drainage piping | Txoj kab uas hla | 1" | 1.5" | 1.5" | 2" | 2" | 2.5" |
Dej ntws (m³ / h) | 2.74 | 4.27 | 4.27 | 8.59 | 8.59 | 14.55 | |
Muab hluav taws xob | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | |
Lub peev xwm tub yees yog raws li qhov ntsuas kub ntawm 7 degree, condenser kub ntawm 50 degree, tub yees: R22, thiab cov dej txias txias ntawm 32-37 degree | |||||||
Qauv | SCA-30K-Ⅱ | SCA-40K | SCA-50K | SCA-60K | SCA-80K | |
Lub tub yees muaj peev xwm (Kcal / h) | 81502.2/94.77/27 | 108669.6/126.36/36 | 135837/158/45 | 163004.4/189.5/53.9 | 217339.2/252.72/71.9 | |
Cov tub yees | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
Compressor zog (HP) | 30 | 40 | 50 | 60 | 80 | |
Circulating Pump zog (Hp) | 4 | 40HP thiab siab dua yog teeb tsa raws li cov neeg siv khoom xav tau | 40HP thiab siab dua yog teeb tsa raws li cov neeg siv khoom xav tau | 40HP thiab siab dua yog teeb tsa raws li cov neeg siv khoom xav tau | 40HP thiab siab dua yog teeb tsa raws li cov neeg siv khoom xav tau | |
Txias kiv cua | Txoj kab uas hla (mm) | 700 | 750 | 630 | 700 | 750 |
Cua Volume (m³ / h) | 2*15000 | 2*19000 | 3*12220 | 3*15000 | 3*19000 | |
Chilled drainage piping | Txoj kab uas hla | 2.5" | 3" | 3" | 4" | 4" |
Dej ntws (m³ / h) | 14.55 | 22.06 | 22.06 | 42.2 | 42.2 | |
Muab hluav taws xob | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | AC380V50HZ3PH 3 | |
Lub peev xwm tub yees yog raws li qhov ntsuas kub ntawm 7 degree, condenser kub ntawm 50 degree, tub yees: R22, thiab cov dej txias txias ntawm 32-37 degree | ||||||
Technical parameters ntawm qhib cua - txias scroll chiller | ||||||||
Qauv | RC 2-40UA | RC 2-50UA | RC 2-60UA | RC 2-80UA | RC 2-90UA | RC 2-100UA | RC 2-120UA | |
Lub tub yees muaj peev xwm(Kcal / h) | 107576/124.6/35.4 | 141126/164.1/46.7 | 151188/175.8/50 | 202272/235.2/66.9 | 252496/293.6/83.5 | 281134/326.9/93 | 329208/382.8/108.9 | |
Cov tub yees | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | R22/R134A/ | |
CompressorLub zog (Hp) | 40 | 50 | 60 | 80 | 90 | 100 | 120 | |
Muab hluav taws xob | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | AC380V50HZ3PH / | |
Lub zog tswj hom | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | 25%-50%-75%-100% | |
Pib hom | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | |
Piping ntawm dej txias system | Txoj kab uas hla | 3" | 3" | 3" | 3" | 4" | 4" | 4" |
Lub peev xwm tub yees yog raws li qhov ntsuas kub ntawm 7 degree, condenser kub ntawm 50 degree, tub yees: R22, thiab cov dej txias txias ntawm 32-37 degree | ||||||||
Cov neeg siv khoom Case
Qhib chiller yog siv dav hauv kev txhaj tshuaj molding, electroplating, luam ntawv, tshuaj lom neeg kev lag luam, khoom noj khoom haus thiab lwm yam lag luam.
Kuv lub tuam txhab tau ua haujlwm ntau yam kev lag luam, muaj kev nplua nuj ntawm kev lag luam thov kev paub.
FAQ
Cov teeb meem tshwm sim thaum yuav khoom
Q: Ntev npaum li cas koj lub tuam txhab tau tsim?
A: Peb lub tuam txhab tau tsim nyob rau hauv 2014, tab sis feem ntau ntawm peb cov engineers tau nyob rau hauv kev lag luam rau ntau tshaj 15 xyoo, thiab peb tus thawj coj tau nyob rau hauv kev lag luam rau ntau tshaj 20 xyoo.
Q: Koj lub tuam txhab puas yog tuam txhab lag luam?
A: Peb lub tuam txhab yog lub tuam txhab lag luam, tab sis peb muaj peb lub Hoobkas.
Q: Koj cov nqe lus them nqi yog dab tsi?
A: T / T them 30% ua ntej thiab 100% ua ntej xa khoom.
Q: Koj lub sijhawm xa khoom ntev npaum li cas?
A: 25-30 hnub ua haujlwm rau cov khoom lag luam thiab 45 hnub ua haujlwm rau kev hloov kho tsis raug cai
Q: Lub warranty ntev npaum li cas?
A: Yog tias cov khoom tawg lossis puas lawm, tsis pub dhau 18 lub hlis txij li hnub tawm hauv lub hoobkas.
Cov khoom no yog muab pub dawb los ntawm peb lub tuam txhab (tshwj tsis yog cov khoom hnav vim muaj teeb meem zoo).
