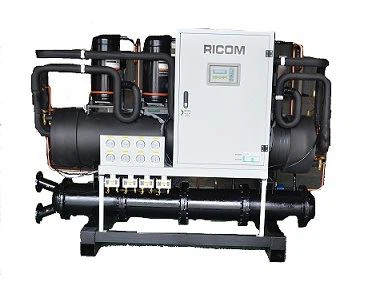

Dej txias industrial chiller, tseem hu ua dej txias lub thawv-hom muaj chiller, yog ib yam khoom siv rau ntau yam kev lag luam nrog cov txheej txheem sib txawv, thiab cov cuab yeej siv los ua kom tiav lub hom phiaj ntawm cov txheej txheem los ntawm kev ua kom txias.
Txheej txheem cej luam:
Nws yog dav siv hauv kev kho mob, zaub mov, lom, tshuaj lom neeg, laser, metallurgy, khoom siv kho tshuab, electroplating, ua thiab lwm yam lag luam. Vim tias lub hauv paus ntawm nws qhov kev sib pauv cua sov yog dej, nws tau nruab nrog lub tshuab cua txias tshwj xeeb, yog li nws hu ua "dej txias".
Kev lag luam dej txias chiller yog tsim rau cov yas thiab cov tshuab ua haujlwm. Nws muaj peev xwm tswj tau qhov kub ntawm cov yas molding pwm kom luv lub voj voog molding thiab ua kom cov khoom zoo. Thiab tsis cuam tshuam los ntawm ib puag ncig yam, nws yog ib qho khoom siv tsis tseem ceeb hauv kev lag luam niaj hnub.
Nta thiab siv:
Nta:
1. Tag nrho cov kav dej yog insulated los tiv thaiv lub zos convection nyob rau hauv lub cev pipeline.
2. Qhov txias txias yog 5 degree -35 degree .
3. Independent kub maub los antifreeze tiv thaiv.
4. Stainless hlau insulated dej tank.
5. Tswj Circuit Court theem ib ntus tiv thaiv, refrigerant system siab thiab qis voltage hloov tswj.
6. Hydrophilic lub teeb fin condenser, zoo dua tshav kub hloov thiab sai dua tshav kub dissipation.
7. Compressor thiab twj tso kua mis muaj kev tiv thaiv overload.
8. Lub plhaub muaj peev xwm loj-thiab-tube evaporator muaj qhov ua kom txias zoo thiab tsim nyog rau qhov kub thiab txias.
9. Cov tub yees siv R22, thiab cov nyhuv txias yog qhov zoo.
10. Xaiv R407C ib puag ncig tus phooj ywg refrigerant, ze rau qhov xwm txheej.
Uyog:
Chillers feem ntau yog siv hauv cov tshuab cua txias thiab cov cua txias. Hauv cov tshuab cua txias, cov dej txias txias feem ntau yog muab faib rau cov khoom siv hluav taws xob los yog cov coils hauv cov cua tuav lossis lwm yam khoom siv dav hlau kom txias hauv lawv qhov chaw, thiab tom qab ntawd cov dej txias tau muab faib rov qab rau hauv qhov chaw txias. Hauv cov ntawv thov kev lag luam, cov dej txias lossis lwm cov kua dej yog siv los ntawm cov txheej txheem lossis cov cuab yeej kuaj. Industrial chillers yog siv nyob rau hauv txhua qhov chaw ntawm lub neej los tswj qhov txias ntawm cov khoom, mechanisms thiab cog machinery.
Chillers feem ntau tuaj yeem muab faib ua cov dej txias thiab cua txias raws li daim ntawv txias. Technically, lub zog efficiency piv ntawm dej-txias yog 300 mus rau 500 kcal / h siab dua li ntawm cua-txias; nyob rau hauv cov nqe lus ntawm tus nqi, dej-txias yog qis dua li cua-txias; Hauv kev teeb tsa, dej txias yuav tsum tau muab tso rau hauv lub tshuab ua kom txias ua ntej nws tuaj yeem siv tau, thaum cua txias tuaj yeem txav tau yam tsis muaj lwm yam kev pab, tab sis cov cua txias chiller tsuas yog tso siab rau cov kiv cua kom dissipate cua sov, thiab muaj cov kev cai rau ib puag ncig. : xws li qhov cua, av noo, thiab kub tsis siab tshaj 40 degree.
Qauv thiab muaj pes tsawg leeg:
Cov khoom tseem ceeb yog lub tank dej txias (feem ntau lub tsev tuaj nrog), lub twj tso kua mis dej (feem ntau lub tsev tuaj nrog), chav tsev, cov khoom siv cua txias thiab cua txias thiab cov kav dej txuas. Kev teeb tsa yooj yim heev, tom qab txuas cov kav dej thiab lub zog hluav taws xob (380V), nws tuaj yeem siv tau ib txwm.
Kev xaiv siv siv:
Cov tsis xav tau rau cov dej txias chillers hauv kev lag luam sib txawv kuj txawv heev. Feem ntau, cov kev ntsuas hauv qab no yuav tsum tau them sai sai rau. Cov neeg siv tuaj yeem xaiv ntau hom qauv ntawm chav tsev raws li lawv tus kheej xav tau:
1. Qhov kub thiab txias ntawm tus qauv chiller yog 5 degrees, (20 degrees mus rau 15 degrees), yog tias ib tug -10HP/7.5KW chiller muaj tus qauv chiller ntws tus nqi ntawm 3.5 cubic meters ib teev. Tom qab ntawd thaum koj sim cov chiller no, koj tuaj yeem tsis tsuas yog saib ntawm qhov ntws ntawm lub chiller, tab sis kuj yog qhov kub thiab txias koj xav tau. Yog tias qhov ntsuas kub koj sim poob los ntawm 58 degrees mus rau 7 degrees, thiab qhov kub thiab txias sib txawv yog qhov loj, ces Txo cov dej txias txias ib teev los ntawm 3.5 cubic meters mus rau ntau tshaj 1 cubic meter. Yog tias koj xav tau lub chiller nrog tus nqi ntws ntawm 3.5 cubic meters ib teev, xaiv tus qauv loj dua.
2. Thaum sim tawm lub chiller, nws nyob ntawm seb koj puas txias ncaj qha lossis tsis ncaj. Direct cooling yog tso dej ncaj qha rau hauv lub chiller, thiab cov dej khov tuaj tawm ncaj qha kom txias cov khoom koj xav tau. Cov nyhuv ntawm qhov txias txias yog pom tseeb zoo dua. Indirect cooling yog sib npaug rau tso dej rau hauv ib lub phiab, tso ib lub phiab me rau saum lub phiab, thiab muab cov khoom tso rau hauv lub phiab me. Raws li kev hais lus, qhov cuam tshuam ntawm kev ua kom txias tsis yog tsawg dua. Yog li ntawd, koj yuav tsum xav txog qhov no thaum xaiv tus qauv.
3. Qee cov neeg siv lub pas dej ua kom txias, uas muaj qhov tsis zoo hauv qab no:
(1) Cov dej tsis zoo, thiab nws yooj yim los thaiv cov dej channel ntawm lub tshuab, ua rau poob ntau dua.
(2) Siv cov dej pov tseg thiab ua rau cov neeg siv khoom nce nqi.
(3) Thaum huab cua kub dhau, dej kub tsis tuaj yeem ua tau raws li qhov yuav tsum tau ua, uas cuam tshuam rau cov khoom zoo thiab kev ua haujlwm zoo.
Kev ceev faj ua ntej kev teeb tsa cov dej txias muaj chiller
1.Thaum txhim kho lub tshuab chiller, nco ntsoov xaiv qhov chaw nrog lub hauv paus ruaj khov, qhib qhov chaw ib puag ncig, tsis muaj kev cuam tshuam, thiab tsis txhob xeb, muaj kuab paug, hnub ci, thiab nag, uas yooj yim rau kev teeb tsa thiab kev debugging, thiab xaiv qhov sib txuam ntawm cov dej txias ntauwd. raws li lub peev xwm txias ntawm cov dej txias chiller. Thov nruab cov kav dej chiller raws li qhov loj ntawm lub tshuab. Tsis txhob txo qhov loj ntawm cov kav dej txias, uas yuav ua rau muaj kev kub ntxhov ntau dhau, cuam tshuam rau qhov txias txias thiab ua kom lub zog noj. Nco tseg:
a. Cov yeeb nkab dej txias ntawm lub tshuab cua txias uas tau tsim tshiab yuav tsum tau npog nrog txheej rwb thaiv tsev!
b. Lub zog thauj khoom thiab qhov chaw hauv av yuav tsum raug tsim ua raws li cov cai thiab cov cai!
2. Txawm hais tias lub Hoobkas lub zog muab hluav taws xob voltage thiab tus naj npawb ntawm cov theem ua tau raws li cov qauv tshwj xeeb, thov xa mus rau lub npe ntawm lub chiller.
3.First sau cov dej tsis siv neeg rov ua dej tank lossis stainless hlau khov dej tank ntawm lub thawv-hom chiller nrog dej, lossis pib lub twj tso kua dej tom qab lwm qhov nruab nrab khov; (Faj seeb: thov siv lub freezing nruab nrab raws li qhov yuav tsum tau muaj)
4.Thov xyuam xim rau kev khiav dej num ntawm lub twj tso kua mis thiab seb tus kiv cua ntawm cov dej txias ntauwd ntawm cov dej txias chiller yog thim rov qab (yog tias lub twj tso kua dej yog peb-theem, ib qho ntawm ob ntawm cov kab hluav taws xob yuav tsum tau hloov. rau kev thim rov qab, thiab tom qab ntawd qhov hloov pauv raug kaw tom qab kev sib txuas tiav).
5. Txawm hais tias cov kav dej khov thiab cov kav dej txias ntawm cov dej txias chiller txuas nrog cov kav dej, thiab ua kom lub valve qhib.
Cov kauj ruam ua haujlwm ntawm dej txias:
1. Ua ntej, tig lub hwj chim ntawm lub chiller mus rau ON txoj hauj lwm;
2. Qhib lub tshuab cua txias. Lub sijhawm no, ua tib zoo saib xyuas cov dej txias hauv qhov hluav taws xob thiab lub qhov hluav taws xob yuav tsum qhib.
3. Qhib qhov hloov ntawm lub twj tso kua mis txias dua. Thov nco ntsoov tias lub qhov hluav taws xob thiab qhov hluav taws xob ntawm cov dej txias yuav tsum qhib. Tom qab qhov ncua sij hawm ntawm qhov hloov mus qeeb, lub compressor yuav khiav tau. Thov xyuas thiab kho qhov kub thiab txias.
4. Thaum cov dej txias chiller raug kaw, thov ua haujlwm hauv qhov kev txiav txim rov qab.
Cov dab neeg ua tiav thoob plaws hauv kev lag luam tau muab qhia rau koj siv
Khoom Parameter (R407C)
Technical Parameters ntawm Dej Txias Scroll Chiller (Ⅰ) | |||||||
Qauv | SCW-05 | SCW-08 | SCW -10-Ⅱ | SCW -15-Ⅲ | SCW -20-Ⅱ | SCW -25-Ⅱ | |
Lub tub yees muaj peev xwm (Kcal/lKw/Rt/h) | 15093 Kcal 17.55 KW TSI 4, 99 ttk | 24148 Kcal 28.08 KWG 7, 98 ttk | 30 186 kcal 35.1 KW UA 9, 98 ttk | 4 5279kv 52.65 kWm 14.97 Nws | 6 0372kv 70.2 kWm 19.96 Nws | 7 5465k 87.75 kWm 24.95 Nws | |
Cov tub yees | R407C | ||||||
compressor zog (Hp) | 5 | 8 | 10 | 15 | 20 | 25 | |
Circulating twj tso kua mis zog (Hp) | 0.75 | 1 | 1/1.5 | 1.5/2 | 1.5/2 | 2/3 | |
Piping ntawm dej txias system | cev diam | 1" | 1.5" | 1.5" | 2" | 2" | 2.5" |
Dej ntws (m³ / h) | 3.4 | 5.5 | 6.85 | 9.3 | 12.7 | 15.1 | |
Chilled drainage piping | cev diam | 1" | 1.5" | 1.5" | 2" | 2" | 2.5" |
Dej ntws (m³ / h) | 2.74 | 4.27 | 4.27 | 8.59 | 8.59 | 14.55 | |
muab hluav taws xob | AC380V50HZ3PH 3 AC440V50HZ3PH 3 AC 220V 60HZ 3PH | ||||||
Nqe lus piav qhia: 1.Lub peev xwm txias yog raws li qhov kub thiab txias: 7degreeCondenser kub: 40degree, tub yees: R407C, dej txias txias: 32-37degree 2.Optional refrigerant:R134A / R404A / R22 | |||||||
Technical Parameters ntawm Dej Txias Scroll Chiller (Ⅱ) | ||||||
Qauv | SCW -30-Ⅱ | SCW-40 | SCW-50 | SCW-60 | SCW-80 | |
Lub tub yees muaj peev xwm (Kcal/lKw/Rt/h) | 9 0558k PEB 105.3 KW 29.94 Nws | 120744 Kcal 140.4 KW TSI 39.92 Nws | 150930 Kcal 175.5 KW TSI 4 9.9 ttk | 181116 Kcal 210.6 KW TSI 5 9.88 ttk | 241488 Kcal 280.8 KW TSI 7 9.84 ttk | |
Cov tub yees | R407C | |||||
compressor zog (Hp) | 30 | 40 | 50 | 60 | 80 | |
Circulating twj tso kua mis zog (Hp) | 3/4 | 40HP thiab siab dua yog teeb tsa raws li cov neeg siv khoom xav tau | ||||
Piping ntawm dej txias system | cev diam | 2.5" | 3" | 3" | 4" | 4" |
Dej ntws (m³ / h)
| 18.5 | 24.5 | 30.2 | 36.2 | 48.2 | |
Chilled drainage piping | cev diam | 2.5" | 3" | 3" | 4" | 4" |
Dej ntws (m³ / h) | 14.55 | 22.06 | 22.06 | 42.2 | 42.2 | |
muab hluav taws xob | AC380V50HZ3PH 3 AC440V50HZ3PH 3 AC 220V 60HZ 3PH | |||||
Nqe lus piav qhia: 1.Lub peev xwm txias yog raws li qhov kub thiab txias: 7degreeCondenser kub: 40degree, tub yees: R407C, dej txias txias: 32-37degree 2.Optional refrigerant:R134A / R404A / R22 | ||||||
Technical Parameters ntawm Dej - Txias Ntsia Hlau Chiller（Ⅰ） | |||||||
Qauv | RC 2-40W | RC 2-50W | RC 2-60W | RC 2-80W | RC 2-90W | RC 2-100W | |
Lub tub yees muaj peev xwm (Kca/lKw/Rt/h) | 11 9282 KWG 138.7 KW UA 39.4 r ib | 15 4026 KWG 179.1 KW UA 50.9 r ib | 17 2946 kwg 201.1 KW TSI 57.2r ua | 229878k ua 267.3 KW UA 76rt ua | 287670k ua 3 34.5 kWm 9 5.1r | 314502k ua 3 65.7 kWm 104 Rt | |
Cov tub yees | R407C | ||||||
Compressor Lub zog (Hp) | 40 | 50 | 60 | 80 | 90 | 100 | |
Muab hluav taws xob | AC380V50HZ3PH 3 AC440V50HZ3PH 3 AC 220V 60HZ 3PH | ||||||
Lub zog tswj hom | 25%-50%-75%-100% | ||||||
Starting hom | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | |
Piping ntawm dej txias system | Txoj kab uas hla | 3" | 3" | 3" | 3" | 4" | 4" |
Chilled drainage piping | Txoj kab uas hla | 3" | 3" | 3" | 3" | 4" | 4" |
Nqe lus piav qhia: 1.Lub peev xwm txias yog raws li qhov kub thiab txias: 7degreeCondenser kub: 40degree, tub yees: R407C, dej txias txias: 32-37degree 2.Optional refrigerant:R134A / R404A / R22 | |||||||
Technical Parameters ntawm Dej - Txias Ntsia Hlau Chiller（Ⅱ） | |||||||
Qauv | RC 2-110W | RC 2-120W | RC 2-140W | RC 2-150W | RC 2-160W | RC 2-180W | |
Lub tub yees muaj peev xwm (Kcal / h) | 343742k ua 3 99.7 kWm 113.6 Ib | 3 71004k 4 31.4 kWm 122.7 Nws | 439030k ua 510.5 KW UA 145.2 Ib | 463540k ua 5 39kw 153.3 r ib | 512818k ua 596.3 kwm 169.5 Ib | 571470k ua 664.5 KWG 188.9 r ib | |
Cov tub yees | R407C | ||||||
Compressor Lub zog (Hp) | 110 | 120 | 140 | 150 | 160 | 180 | |
Muab hluav taws xob | AC380V50HZ3PH 3 AC440V50HZ3PH 3 AC 220V 60HZ 3PH | ||||||
Lub zog tswj hom | 25%-50%-75%-100% | ||||||
Starting hom | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | |
Piping ntawm dej txias system | Txoj kab uas hla | 4" | 4" | 5" | 5" | 5" | 5" |
Chilled drainage piping | Txoj kab uas hla | 4" | 4" | 5" | 5" | 5" | 5" |
Nqe lus piav qhia: 1.Lub peev xwm txias yog raws li qhov kub thiab txias: 7degreeCondenser kub: 40degree, tub yees: RR407C, dej txias txias: 32-37degree 2.Optional refrigerant:R134A / R404A / R22 | |||||||
Technical Parameters ntawm Dej - Txias Ntsia Hlau Chiller（Ⅲ） | |||||||
Qauv | RC 2-200W | RC 2-220W | RC 2-240W | RC 2-280W | RC 2-300W | RC 2-320W | |
Lub tub yees muaj peev xwm (Kca/lKw/Rt/h) | 664952k ua 773.2 kwm 2 19,8r | 730312k ua 8 49.2kw 241.5 r ib | 74 200 8 kwg 862.8KW 245.3 r ib | 87806 0 kwg 10 21 kWm 290.3 r ib | 92708 0 kwg 10 78 kWm 3 06.5r | 1025636 KWG 1192.6 KW UA 3 39.1r | |
Cov tub yees | R407C | ||||||
Compressor Hwj chim（Hp） | 200 | 220 | 240 | 280 | 300 | 320 | |
Supply voltage | AC380V50HZ3PH / AC440V50HZ3PH / AC 220V 60HZ 3PH | ||||||
Lub zog tswj hom | 25%-50%-75%-100% | ||||||
Starting hom | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | |
Piping ntawm dej txias system | Txoj kab uas hla | 5" | 5" | 5" | 6" | 6" | 6" |
Chilled drainage piping | Txoj kab uas hla | 5" | 5" | 5" | 6" | 6" | 6" |
Nqe lus piav qhia: 1.Lub peev xwm txias yog raws li qhov kub thiab txias: 7degreeCondenser kub: 40degree, tub yees: R407C, dej txias txias: 32-37degree 2.Optional refrigerant:R134A / R404A / R22 | |||||||
Technical Parameters ntawm Dej - Txias Ntsia Hlau Chiller（Ⅳ） | ||||||
Qauv | RC 2-340W | RC 2-360W | RC 2-400W | RC 2-460W | RC 2-560W | |
Lub tub yees muaj peev xwm (Kca/lKw/Rt/h) | 1092888k ua 1270.8 KW TSI 3 61,3r | 1142940 KWG 1 329 kWm 377.9 qw | 1329904 KWG 1546.4 KW UA 439.7 wb | 14 60624 kwg 1698.4 KW UA 482.9 qw | 1756120 KWG 2 042 kWm 5 80,6r | |
Cov tub yees | R407C | |||||
Compressor Lub zog (Hp) | 340 | 360 | 400 | 460 | 560 | |
Muab hluav taws xob | AC380V50HZ3PH / AC440V50HZ3PH / AC 220V 60HZ 3PH | |||||
Lub zog tswj hom | 25%-50%-75%-100% | |||||
Starting hom | Y/▲ | Y/▲ | Y/▲ | Y/▲ | Y/▲ | |
Piping ntawm dej txias system | Txoj kab uas hla | 6" | 8" | 8" | 8" | 8" |
Chilled drainage piping | Txoj kab uas hla | 6" | 8" | 8" | 8" | 8" |
Nqe lus piav qhia: 1.Lub peev xwm txias yog raws li qhov kub thiab txias: 7degreeCondenser kub: 40degree, tub yees: R407C, dej txias txias: 32-37degree 2.Optional refrigerant:R134A / R404A / R22 | ||||||
Dhau Iso9001 daim ntawv pov thawj zoo thiab daim ntawv pov thawj CE
